MAGH80 Series Gas Cooking Range
The MAGH80 Series Gas Cooking Range is designed according to heavy-duty standards in the U.S. catering industry. Customers can customize different modular units based on their menu and operational needs. By optimizing kitchen space, each module integrates seamlessly to enhance chef convenience and significantly improve kitchen efficiency.

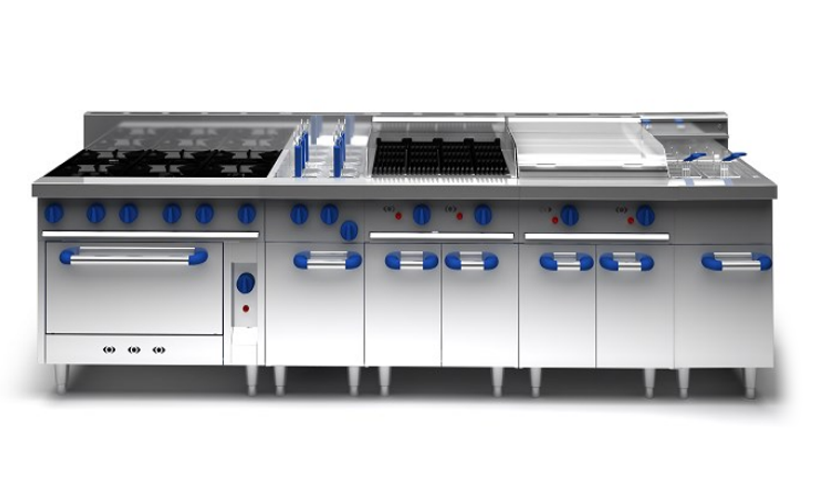

- Hotels & High-End Restaurants: Full Series Available
- Steakhouses: Open Burner with Oven + Griddle + Charbroiler + Fryer
- General Restaurants: Open Burner with Oven + Griddle + Fryer
- Small Restaurants: Open Burner with Oven / Griddle Combination + Fryer

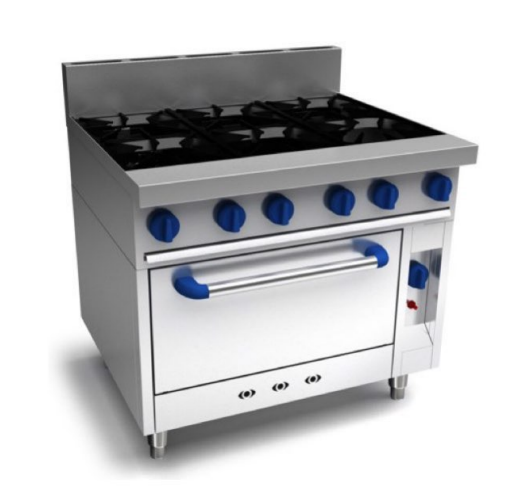

MAGH80 Series Gas Range (MAGH80R36-6) - 6 Open Burners + Oven Dimensions: 91.8 × 80 × (85+15) cm Open Burners: 31,000 BTU/h (9 kW) × 6 Oven: 24,500 BTU/h (7.1 kW) Outer Box Dimensions: 108×95×125cm Gross Weight: 220kg

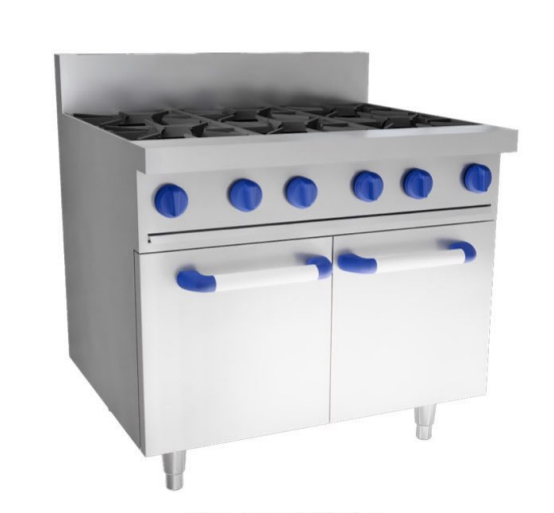

MAGH80 Series (MAGH80T36-6) - 6 Open Burner Range with Cabinet Base Dimensions: 91.8 × 80 × (85+15) cm Open Burners: 31,000 BTU/h (9 kW) × 6 Outer Box Dimensions: 108×95×125cm Gross Weight: 180kg

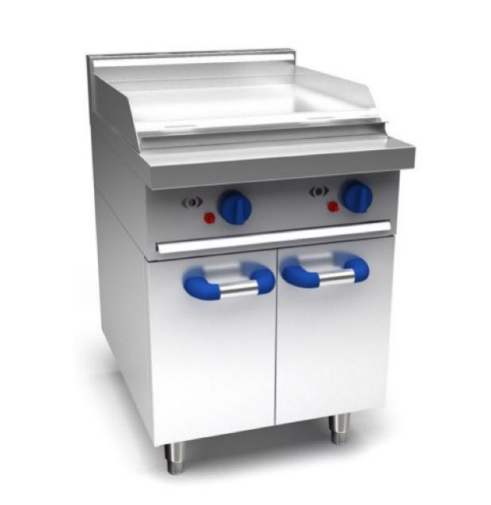

MAGH80 Series (MAGH80G24) - 24" Griddle with Cabinet Base Dimensions: 61.8 × 80 × (85+15) cm Heat Load (Gas): 17,100 BTU/h (5 kW) × 2 Outer Box Dimensions: 98×80×126cm Gross Weight: 135kg

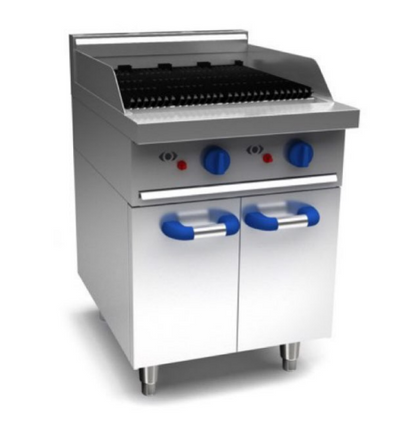

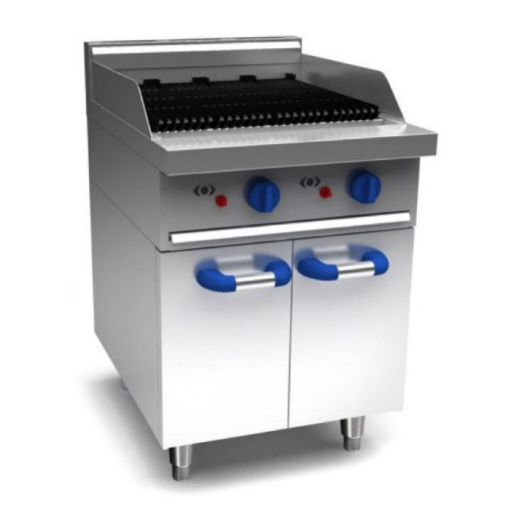

MAGH80 Series (MAGH80B24) - 24" Charbroiler with Cabinet Base Dimensions: 61.8 × 80 × (85+15) cm Heat Load (Gas): 31,000 BTU/h (9 kW) × 2 Outer Box Dimensions: 98×80×126cm Gross Weight: 130kg

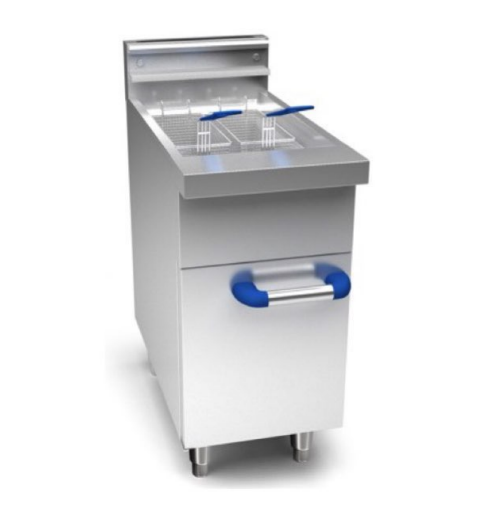

MAGH80 Series (MAGH80F16) Single-Tank Single-Basket Gas Fryer Imported Valve with Flame Failure Protection Oil Capacity: 20-25L Heat Load (Gas): 28,500 BTU/h (8.4 kW) × 3 Dimensions: 40 × 80 × (85+15) cm Outer Box Dimensions: 89×49×108cm Gross Weight: 78kg

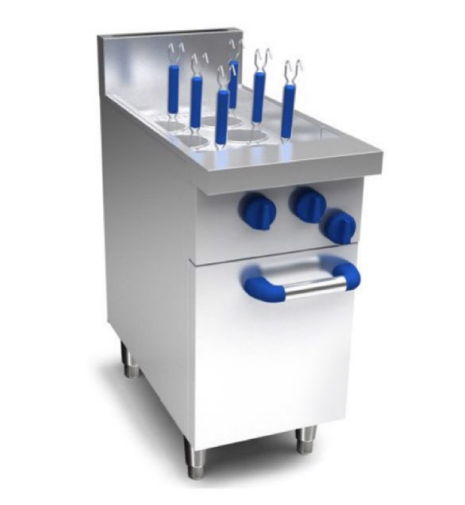

MAGH80 Series (MAGH80PC16) Pasta Cooker 6-Head Gas Noodle/Pasta Cooker Imported Valve with Flame Failure Protection Water Capacity: 32-36L Heat Load (Gas): 31,000 BTU/h (9 kW) × 2 Dimensions: 40 × 80 × (85+15) cm Outer Box Dimensions: 89×49×108cm Gross Weight: 76kg

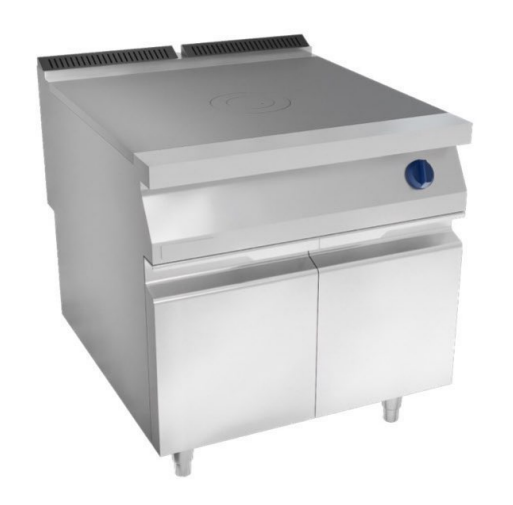

MAGH80 Series (MAGH80ST) French Hot Plate Stove Gas French Stove with Cabinet Base Dimensions: 80×80×85cm Burner Heat Load (Gas): 31,000 BTU/h (9 kW) Outer Box Dimensions: 89×89×94cm Gross Weight: 178kg
